Model NO.	DH-FFGG-3PE
Installation and Connection	Clamping Type Installation
Technology of Plastic Composite Pipe	Internal and External Coating
base Pipe of Plastic Composite Pipe	Welded Steel Pipe
Internal Coating Materials of Plastic Composite Pipe	Inner Epoxy Outside Polyethylene Steel Pipe
Plastic Composite Pipe Coating Form	Inner and Outside Coating
Steel Skeleton PE Pipe Use	Municipal, Chemical, Oil Pipeline
Cathodic Stripping Resistance	(65±3℃,48h,-1.5V) ≤5mm
Bending Resistance	Strengthen Level:1.5°, No Crack
Stamping Resistance	Strengthen Level:15j, No Leakage
Fracture Surface Interstice	1-3 Level
Adhesion Strength	1-2 Level
Anti-Scratch (20℃±3℃)	Strengthen Level(50kg):≤500μm,No Leakage
Transport Package	by Truck, by Train, by Sea
Trademark	DHPI
Origin	China
HS Code	3917330000
Production Capacity	500000 Kilometers /Year



Hot Selling Pipes Steel Wire Reinforced PE Composite PipeFiberglass Steel Wire Reinforced Composite PipeHDPE PipePVC Pipe Antistaic Flame Redartant Composite Pipe for MiningAnti-corrosion Composite PipeThermal Insulated PipeBig Carliber Composite Steel Pipe

Product Description

Transportation: Pipes are crucial for transporting oil, gas, and related products over long distances. Large-diameter pipelines, known as transmission pipelines, are used to transport crude oil, natural gas, and refined products from production fields to refineries, processing plants, and distribution centers.

Epoxy & Plastic coated anti-corrosion steel pipe can adopt a variety of anticorrosive solutions to meet the needs of different working conditions. Applicable to buried,  trenchless traction, pipe jacking and open-air applications and other environmental conditions, the following anti-corrosion solutions can be used respectively:
 - Burried:inner epoxy outer PE,inner epoxy outer 3PE,inner epoxy outer 3PP,inner & outer epoxy coated
 - Pipe Jacking:inner epoxy outer 3PE,inner epoxy outer3PP,inner epoxy outer double layer epoxy
 - Trenchless traction:inner epoxy outer 3PE,inner epoxy outer 3PP,inner epoxy outer double layer epoxy
 - Open-air application:inner epoxy outer anti-uv coated

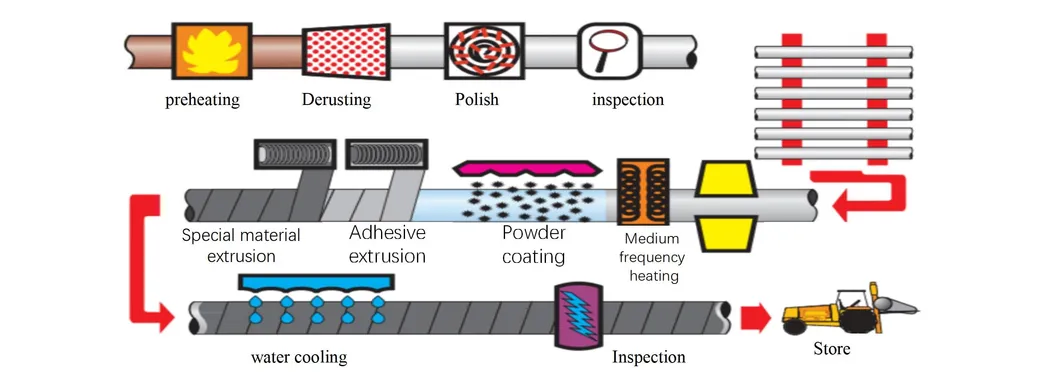

Inner epoxy resin outer polyethylene coating composite steel pipe is a pre-treated steel pipe as the base pipe, pipe heating in its inner surface coated with fusion bonded epoxy powder, the outer surface of the polyethylene powder coated with a corrosion-resistant steel-plastic composite products made of performance.

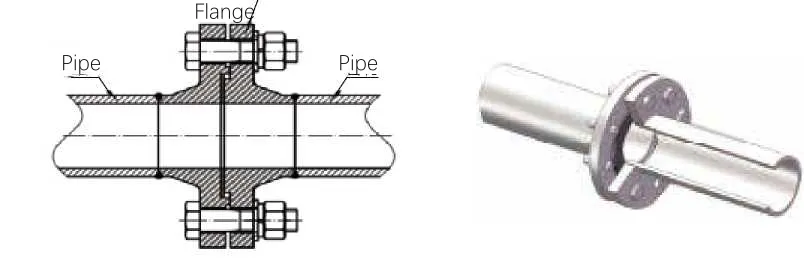

Connection Method

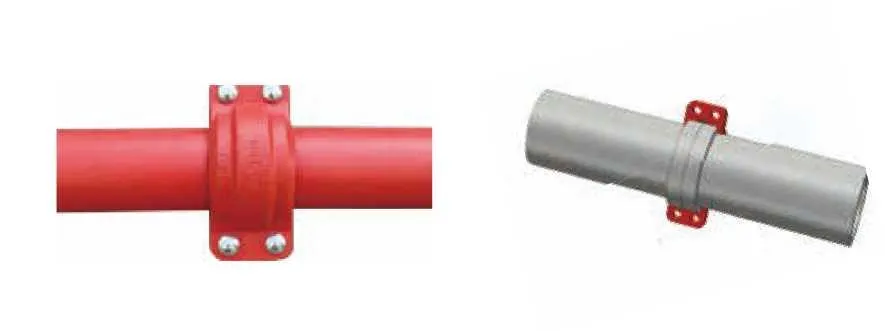

Clamp ConnectionFlange Connection

Product Features



Good compatibility, convenient connection
The inner and outer layers of the double-layer epoxy are epoxy resin coating based on epoxy resin, and the compatibility of the two is good. The solvent-free epoxy coating is used for patenting, which has good compatibility and excellent corrosion resistance.



Good cathodic protection
The double-layer epoxy coating has good compatibility with the cathodic protection and will not shield the cathodic prot

Good flexibility and resistance to bending
The coating material is made of epoxy resin with high molecular weight, which has good flexibility and excellent bending

Scratch Resistance
The outer layer is modified epoxy coating with special scratch material, which has excellent scratch resistance.



High Temperature Resistant
Double-layer epoxy anticorrosive steel pipe can withstand a maximum temperature of 110ºC.

Product Advantages

1. The caliber range is DN50 ~ DN3600, the pipe length is 6 - 16m per piece
2. 2 powder coating production lines, 12 twin-screw extruders, , with perfect powder coating, polyethylene material modification R & D production capacity
3. The largest variety of powder anticorrosion process manufacturers, with: suction coating, spraying, rolling coating, dip coating and other methods.
4. The only one in the country set large-caliber steel pipe, anti-corrosion processing, anti-corrosion materials allproduced in one enterprise.
5. Safety reliability of socket type anti-corrosion steel .


Product Specification

Nominal Diameter/ mmInner Coating Layer /mmOuter coating layer,mm Ordinary levelStrengthen level DN ≤65>0.3>0.6>0.8 65≤DN≤150>0.35>0.8>1.0 150≤DN≤300>0.35>0.8>1.2 300≤DN≤800>0.4>1.0>1.3 800≤DN≤1200>0.45>1.2>1.8 1200≤DN≤3600>0.45>1.5>1.8 Note: can be customized as customer's needs.

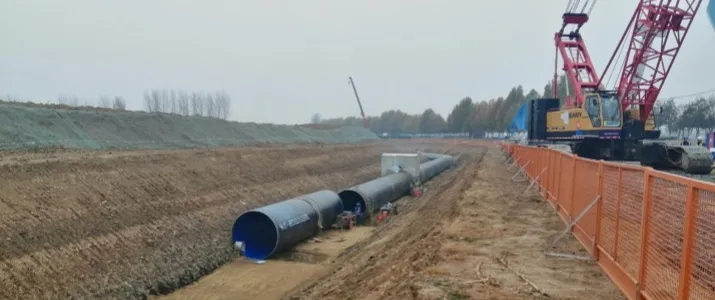

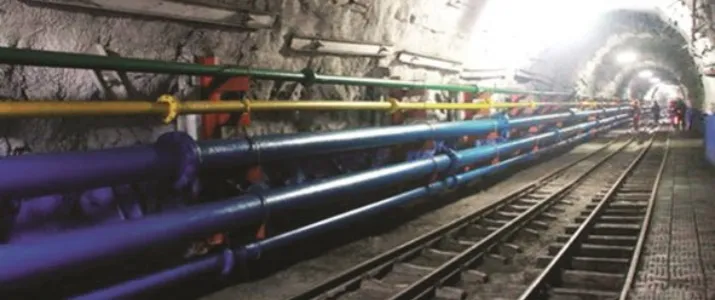

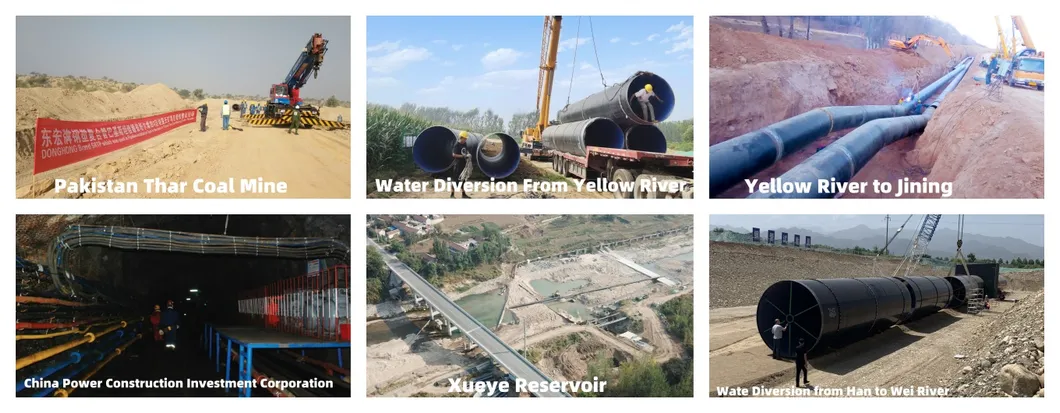

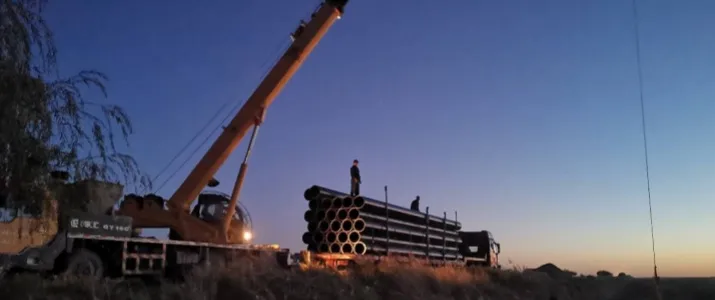

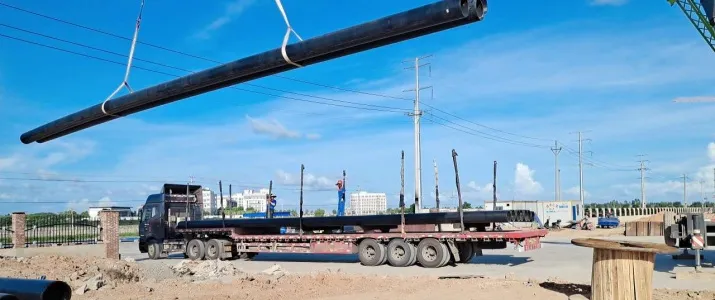

Appliation Cases

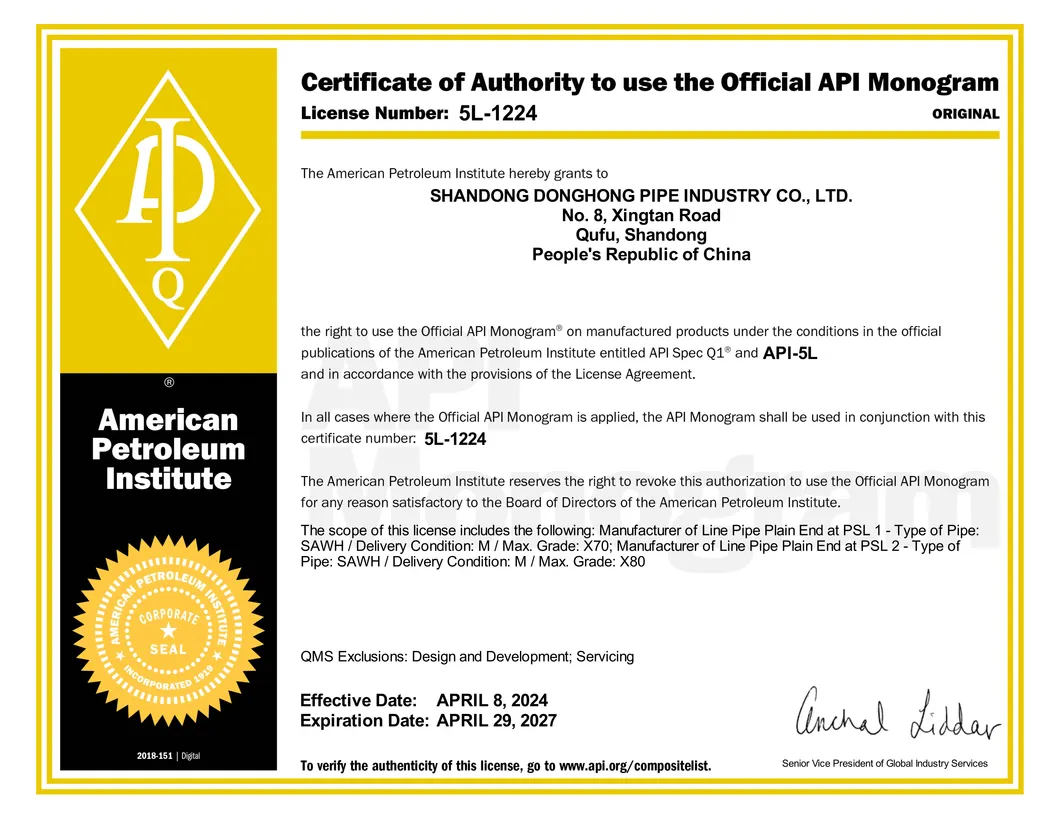

Certifications
